Super Young Oil Expellers

Name: Super Young Oil Expellers
Brand: S.P. FOUNDRIES

450000.0 INR/Number

Get a Price/Quote

Product Details:

Type Cold & Hot Pressing Machine
Material Mild Steel
Production Capacity 5 to 100 Ton/Day Ton
Computerized No
Automatic Grade Automatic
Control System Other
Voltage 15 - 30 Horsepower (HP)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Super Young Oil Expellers Price And Quantity

Minimum Order Quantity 1 Number
Price 450000.0 INR/Number

Operating Mode Continuous
Application Edible Oil Extraction
Condition New
Spare Parts Availability Yes
Machinery Type Heavy Duty
Driven Type Electric
After Sales Service Yes
Noise Level Low
No. of Chambers Double
Mounting Type Floor Mounted

Super Young Oil Expellers Product Specifications

Dimension (L*W*H) 2036mm ( T9") 915mm (3'0") 1880mm 6'2") Foot (ft)
Automatic Grade Automatic
Material Mild Steel
Type Cold & Hot Pressing Machine
Power 5 to 50 HP Horsepower (HP)
Production Capacity 5 to 100 Ton/Day Ton
Computerized No
Weight (kg) 2 Tonne
Control System Other
Voltage 15 - 30 Horsepower (HP)
Color Green

Operating Mode Continuous
Application Edible Oil Extraction
Condition New
Spare Parts Availability Yes
Machinery Type Heavy Duty
Driven Type Electric
After Sales Service Yes
Noise Level Low
No. of Chambers Double
Mounting Type Floor Mounted

Super Young Oil Expellers Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 3 Number Per Month
Delivery Time 12 Week
Main Domestic Market All India

Product Description

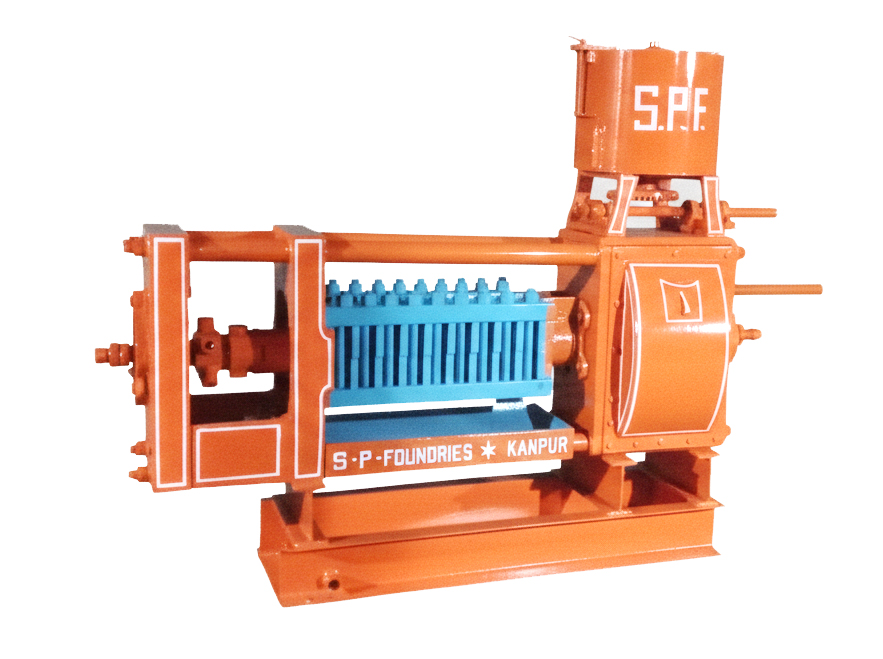

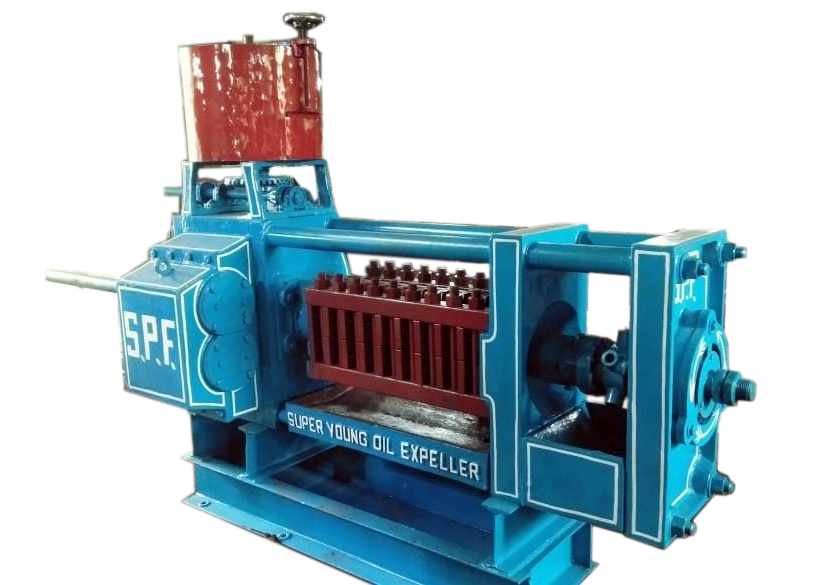

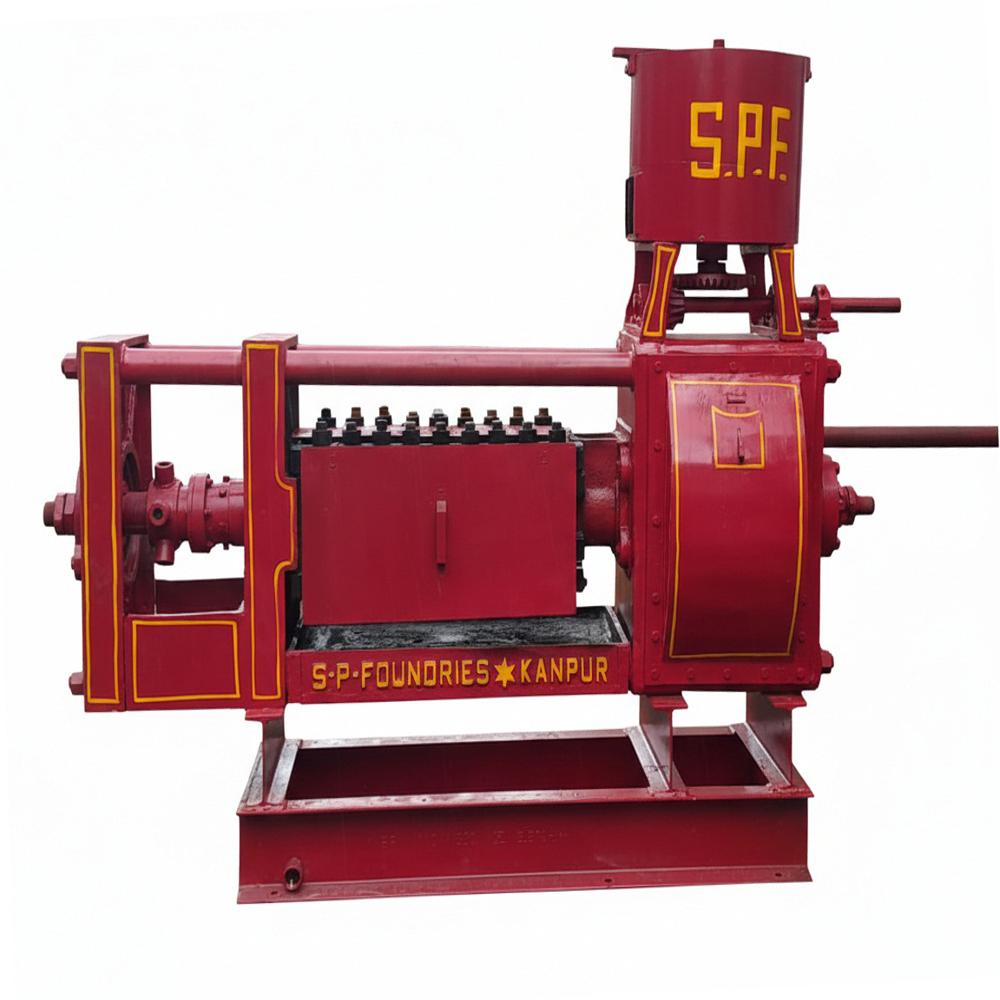

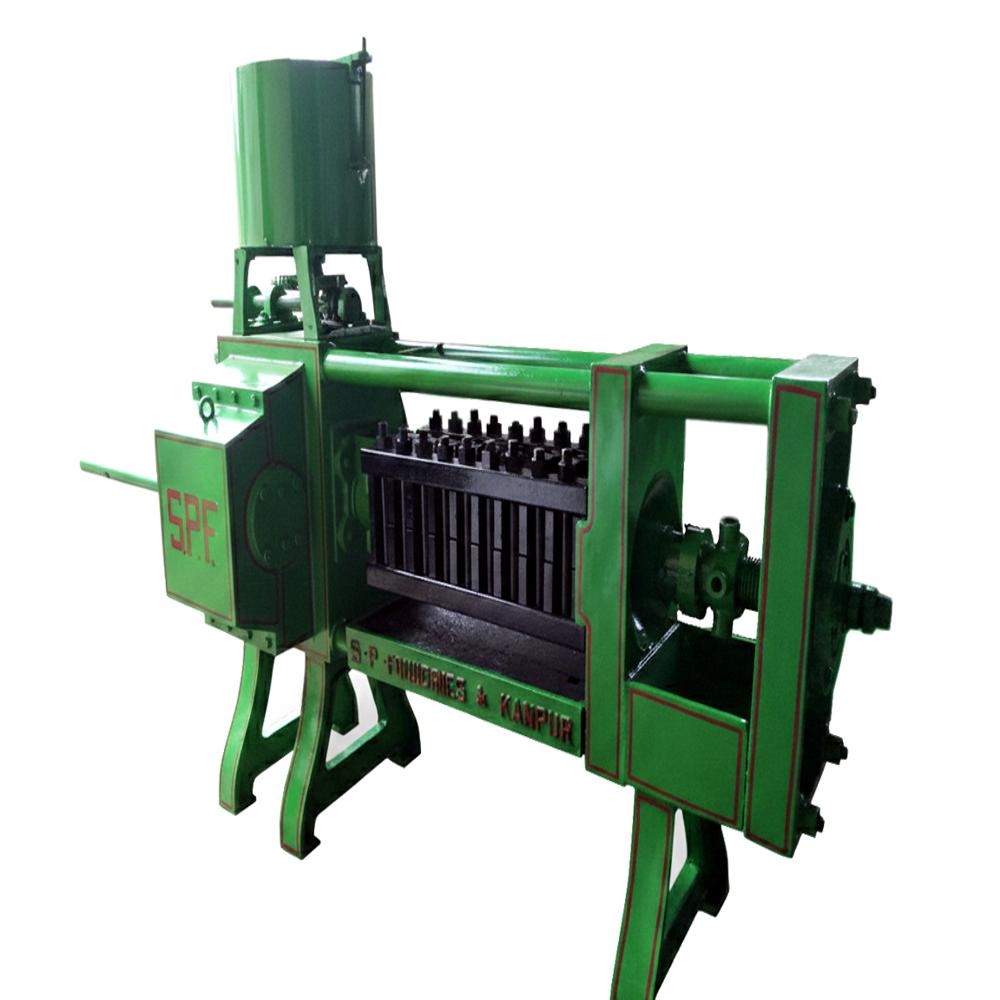

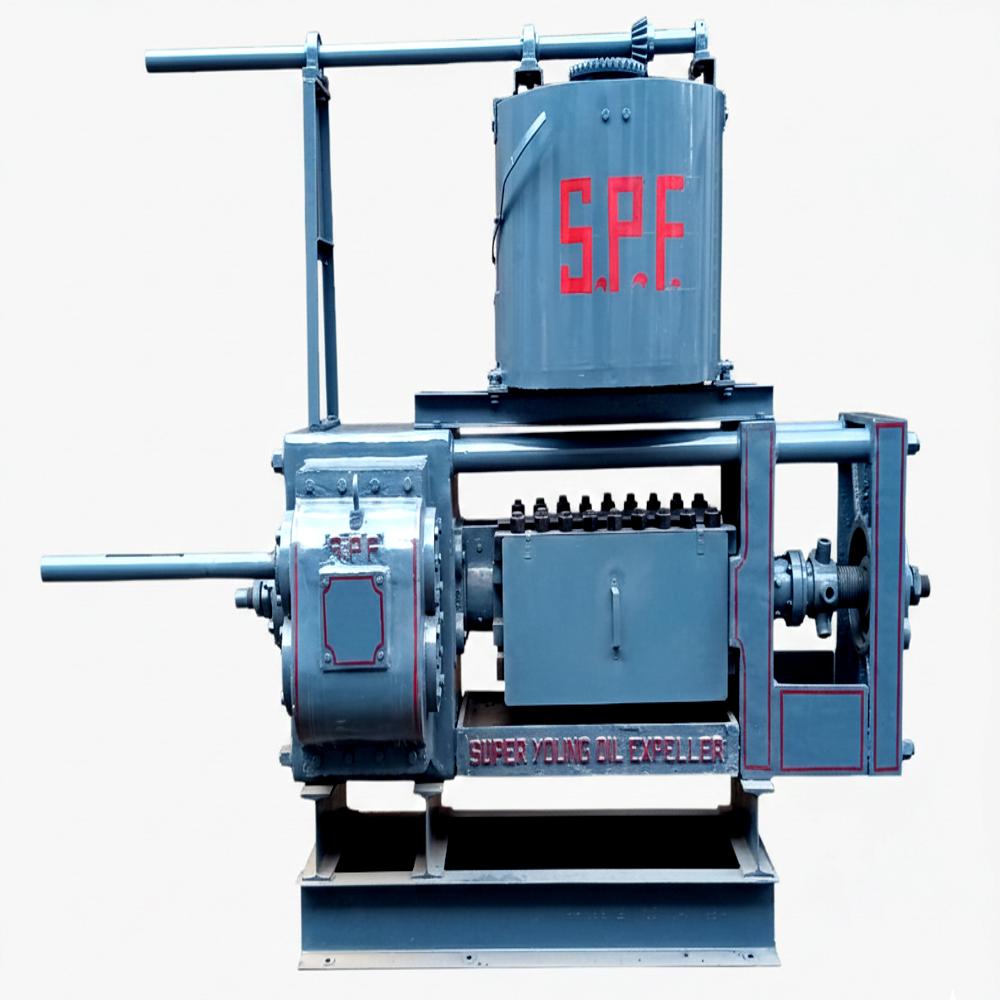

SPF's SUPER YOUNG OIL EXPELLER

Chamber size 762mm X 140mm ( 30" X 5 ") TRIPLE GEAR

It is yet another achievement of the SPF's research and development division to introduce SUPER YOUNG Oil expeller to cater to the needs of the oil milling industry of the world. The deficiency of a medium capacity combined with high yield oil expeller was felt for a long time. The gap is very suitably filled now.

DESIGN

The design of this machine is a real victory for Indian engineers who are now all out to satisfy the global market. Main shaft and side shaft of the machine are 2 " dia (max) to avoid breakage of shaft. Main gear and quill worm gear rest in two ball bearings fitted in each housing.

GEAR BOX

A noiseless oil bath reduction helical gear box is provided within the machine. All Steel hobbbing cut gears are fitted for durability and high efficiency. The gears are manufactured from alloy steel and machining is done on accurate hobbing machines to ensure free movement and longer life of gears. This results in saving of electric power consumption adding to direct profit of oil millers.

BODIES

All the bodies are heavy of graded iron casting. The unique feature is that main body (combined Body no.1 & 2, gear body) is made in single part to ensure leak proof gear box. The body and side brackets are accurately machined on boring machines. Leading to perfect alignment of shaft.

OUTPUT

The capacity of the machine depends upon the oil seed to be crushed. The second factor

which particularly governs the capacity is whether the oil expeller is used for first or intermediate or final crushing.

KETTLE

Oil expeller is supplied with wider round feed box or double jacketed long heating kettle 'pressure tested '.

BED

Bodies rest on bed in a manner to give higher contact area and no vibrations. Built in raw (kutcha) oil tank is provided in bed itself.

SPECIFICATIONS

No. of Gears

Length*

Breath*

Height*

Weight

Dia of Driving Pulley

RPM of Driving Pulley

Required

Capacity

Triple Gear

2036mm

( T9")

915mm (3'0")

1880mm 6'2")

2.5 M Tons

610mm (24")

298

lsth Crush 15-20

Final Crush 20-25

5-14 M Ton

Double Gear

2036mm

( T9")

864mm (2'10" )

1880

(6'2")

2.2 M Tons

712mm (28")

110

15-20

20-25

5-14MTon

Note: In view of constant improvement in design, the above specifications are subject to change without notice.

* Length X Breath X Height are with round feed box.

S.P. FOUNDRIES

123/393 FACTORY AREA, FAZAL GANJ,

KANPUR - 208 012

PH: 9335086259, 9336211360, 9936013959

E-MAIL : spfoundries5@gmail.com

WEBSITE : www.spfoundries.com

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Oil Expellers' category

6 Bolt Oil Expeller Triple Gear Minimum Order Quantity : 1 Automatic Grade : SemiAutomatic Dimension (L*W*H) : 7 x 3 x 5 ft Foot (ft) Material : Cast Iron & Steel Type : Cold & Hot Pressing Machine Computerized : No Power : 1015 HP Horsepower (HP) Production Capacity : 75125 Kg/hr Weight (kg) : 1.3 Metric Ton Control System : Other Color : Green Voltage : 1015 Horsepower (HP)

Send Inquiry

Baby Oil Expellers Minimum Order Quantity : 1 Automatic Grade : SemiAutomatic Dimension (L*W*H) : 1800 x 900 x 1300 mm Material : Mild Steel Type : Other, Oil Expeller Computerized : No Power : 1020 HP Production Capacity : 15 ton/day Weight (kg) : 700 kg Control System : Other, Manual Color : Other, Blue & Silver Voltage : 220240 Volt

Send Inquiry

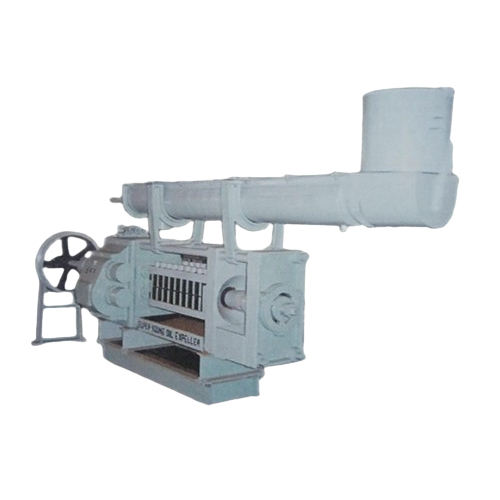

Super Young Oil Expellers With Long Heating Kettle Minimum Order Quantity : 1 Automatic Grade : Automatic Dimension (L*W*H) : 2500 x 950 x 1400 mm Material : Mild Steel Type : Other, Oil Expeller Machine Computerized : No Power : 7.530 HP Production Capacity : 35 Ton per Day Weight (kg) : 1600 Kg (Approx) Control System : Other, Electrical / Manual Color : Other, BlueGrey Voltage : 220380 Volt (v)

Send Inquiry

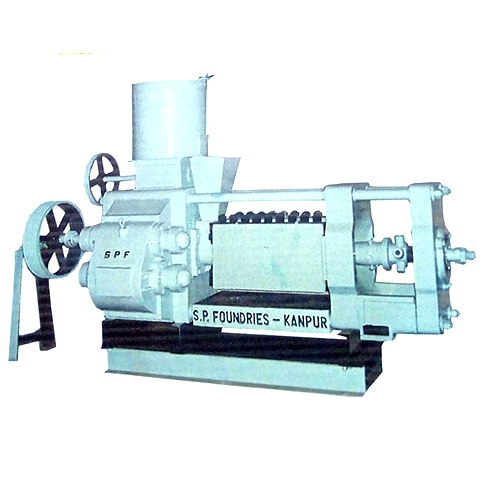

Super Standard Oil Expellers Minimum Order Quantity : 1 Automatic Grade : Automatic Dimension (L*W*H) : 84 x 36 x 50 Material : Mild Steel Type : Other, Oil Expeller Computerized : No Power : 7.540 HP Production Capacity : 520 TPD Weight (kg) : 15002600 kg Control System : Other, Manual / SemiAutomatic Option Color : Green Voltage : 380 V
